Zebra MC33 Repair Guide

Expert Troubleshooting Tips for the Zebra MC3300 Series

By Bar Code Depot – Solutions Made Simple.

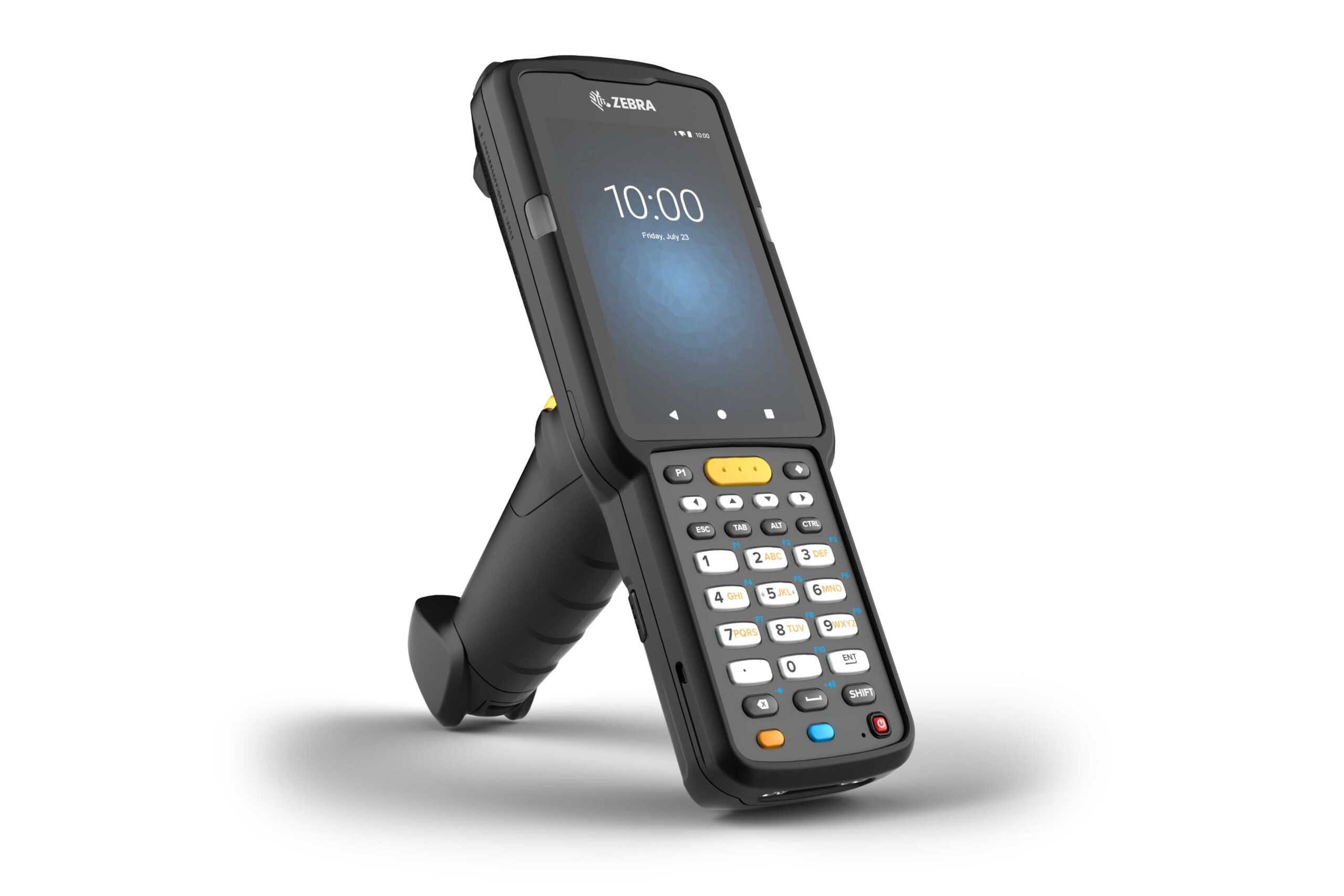

The Zebra MC33 (MC3300) Mobile Computer is a rugged, high-performance handheld device built for demanding warehouse, retail, and logistics environments. Known for its versatility, the Zebra MC33 integrates advanced barcode scanning, real-time data capture, Android OS usability, and long-range wireless communication into a compact, ergonomic design.

But like all hardworking devices, the MC33 isn’t immune to wear, technical glitches, or hardware malfunctions. That’s where Bar Code Depot comes in—with expert Zebra MC33 repair services, fast diagnostics, and support to keep your operations running.

Common Zebra MC33 Issues and Troubleshooting Tips

🛜 Wi-Fi Connectivity Problems

Problem: MC33 won’t connect to Wi-Fi or frequently disconnects.
Solutions:

  • Move closer to the nearest access point to regain signal.
  • Verify that the correct SSID and password are entered under Settings > Network & Internet > Wi-Fi.
  • Reboot the device or toggle Airplane Mode ON and OFF.
  • Reset network settings under Settings > System > Reset options.
  • Confirm your access point is broadcasting on supported frequencies (2.4 GHz or 5 GHz).

🔐 Authentication or Security Errors

Problem: Device says “Not Authenticated” or “Access Denied.”
Solutions:

  • Ensure correct credentials are used (username, password).
  • Check that the authentication method (WPA2, EAP, etc.) matches your network settings.
  • Update the MC33’s date/time settings; authentication servers may reject outdated timestamps.
  • Ensure security certificates are valid and installed correctly.

📸 Barcode Scanner Not Working

Problem: MC33 doesn’t scan or recognize barcodes.
Solutions:

  • Move closer to the barcode or adjust the scanning angle.
  • Open DataWedge and verify scanner input and output profiles are correctly set.
  • Ensure the scan trigger button is functional and not disabled in settings.
  • Use a known-good barcode to test for label quality issues.
  • Clean the scanner window using a lint-free cloth and isopropyl alcohol.

Advanced Tip: Use the Zebra 1D/2D Scan Demo app in Enterprise Toolkit to test scanner hardware.

🔋 Battery & Charging Issues

Problem: Battery won’t charge or device shuts off unexpectedly.
Solutions:

  • Confirm the battery is seated properly in the device.
  • Try charging with a different dock or power cable.
  • If you see a solid amber LED, the battery is too hot or cold—move to a room-temperature area.
  • A blinking red/amber light indicates a charging fault; remove and reinsert the battery.
  • Replace aging batteries (typically after 12–18 months of daily use).

📱 Touchscreen or Button Failures

Problem: Screen not responding or buttons malfunction.
Solutions:

  • Perform a soft reset: Hold the Power button for 10 seconds.
  • Recalibrate touchscreen under Settings > Display > Touch Settings (if supported).
  • Clean screen and buttons from dust or debris buildup.
  • If water damage is suspected, power off immediately and contact Bar Code Depot.

⚙️ Frozen or Unresponsive System

Problem: Device locked up, won’t boot, or freezes during use.
Solutions:

  • Try a warm boot: Hold Power + Scan + PTT until the screen goes black and restarts.
  • Perform a factory reset (if authorized) via Recovery Mode to clear persistent issues.
  • Ensure your Android version and Zebra MDM/StageNow profiles are up to date.
  • Remove the SD card or peripheral accessories to rule out external conflicts.

Zebra MC33 Repairs We Offer at Bar Code Depot

If troubleshooting doesn’t resolve the issue, we’ve got you covered with full-service Zebra MC33 repairs, including:

  • LCD & touchscreen replacements
  • Keypad and trigger button repair
  • Scanner engine replacement
  • Mainboard diagnostics and repair
  • Battery and charging dock servicing
  • OS reloading and configuration

We stock genuine Zebra parts and offer rapid turnaround times—helping you avoid downtime and replacement costs.
